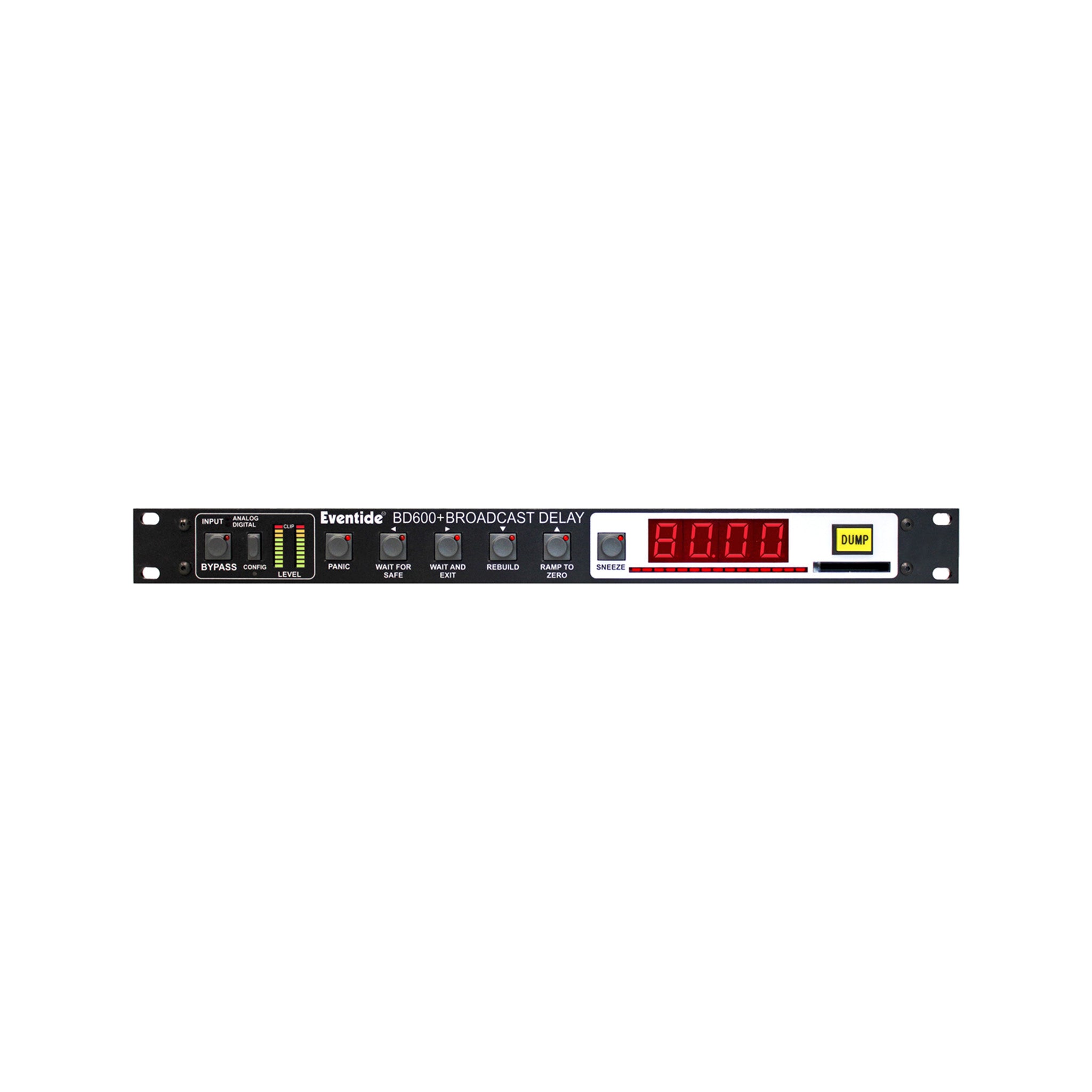

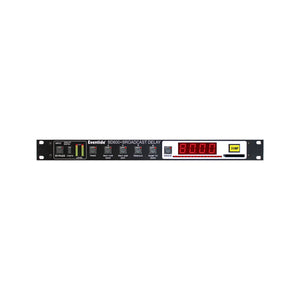

Eventide BD600+ Professional Broadcast Delay Processor

The BD600+ revolutionizes delay technology, delivering high-quality delays of up to 80 seconds - double the delay capabilities of conventional devices. The delay buffer length can be adjusted from 4 seconds to 80 seconds, with the ability to set dumps in 1/2 second to 10 second increments per segment. Each press of the DUMP button deletes a segment, ensuring uninterrupted broadcasts. The innovative “Sneeze” button enables short-term muting, allowing presenters to remain undetected when they accidentally cough, sneeze or say something wrong - minimizing dead air on live broadcasts. Ideal for HD radio, the BD600+ features highly precise delay adjustments for seamless analog-to-digital sync. The MicroPrecision Delay feature ensures effective noise control on live broadcasts, with smooth transitions and no distortion. High-fidelity, remote-controllable, the BD600+ sets a new standard in live broadcast delay technology, representing the culmination of three decades of industry innovation and leadership.

Characteristic:

• Ultra-precise delay mode for HD broadcast quality
• Protect your broadcast with an 80 second delay
• USB Remote Control
• “Panic” supports playing WAV files while recreating delay
• 24-bit AES/EBU digital I/O, optional Wordclock sync
• 24-bit analog XLR I/O
• Dump length can be customized according to user needs
• “Sneeze” button to temporarily edit unwanted sound
• Remote control
• Euroblock easy to wire for remote connection (on base unit)
• RS-232 I/O
• Programmable I/O
• 16 bi-polar opto-isolated inputs and 16 open-collector outputs

Details:

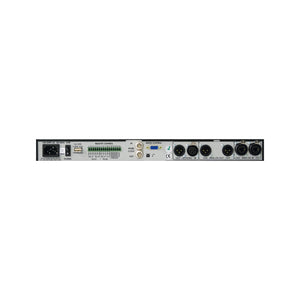

• Analog I/O: XLR pin 2 hot, true differential balanced, +4 dBm nominal
• Digital I/O: 2 channels 24-bit AES/EBU
• Remote: 4 configurable inputs (closure to ground), 2 relay-isolated status outputs
• Compact Flash Interface: Supports Type I & Type II Compact Flash cards for WAV file playback and firmware updates
• Sample Rate: 48kHz, 44.1kHz, Word Clock, AES/EBU
• Power: 40W, 100-240 VAC, 50/60Hz
• Dimensions: 19" (w) x 10.5" (D) x 1.75" (H) / 48.3cm (W) x 26.7cm (D) x 4.5cm (H)
• Weight: 4.1 kg / 9 lb
