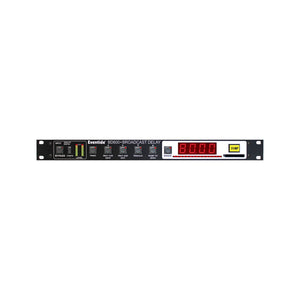

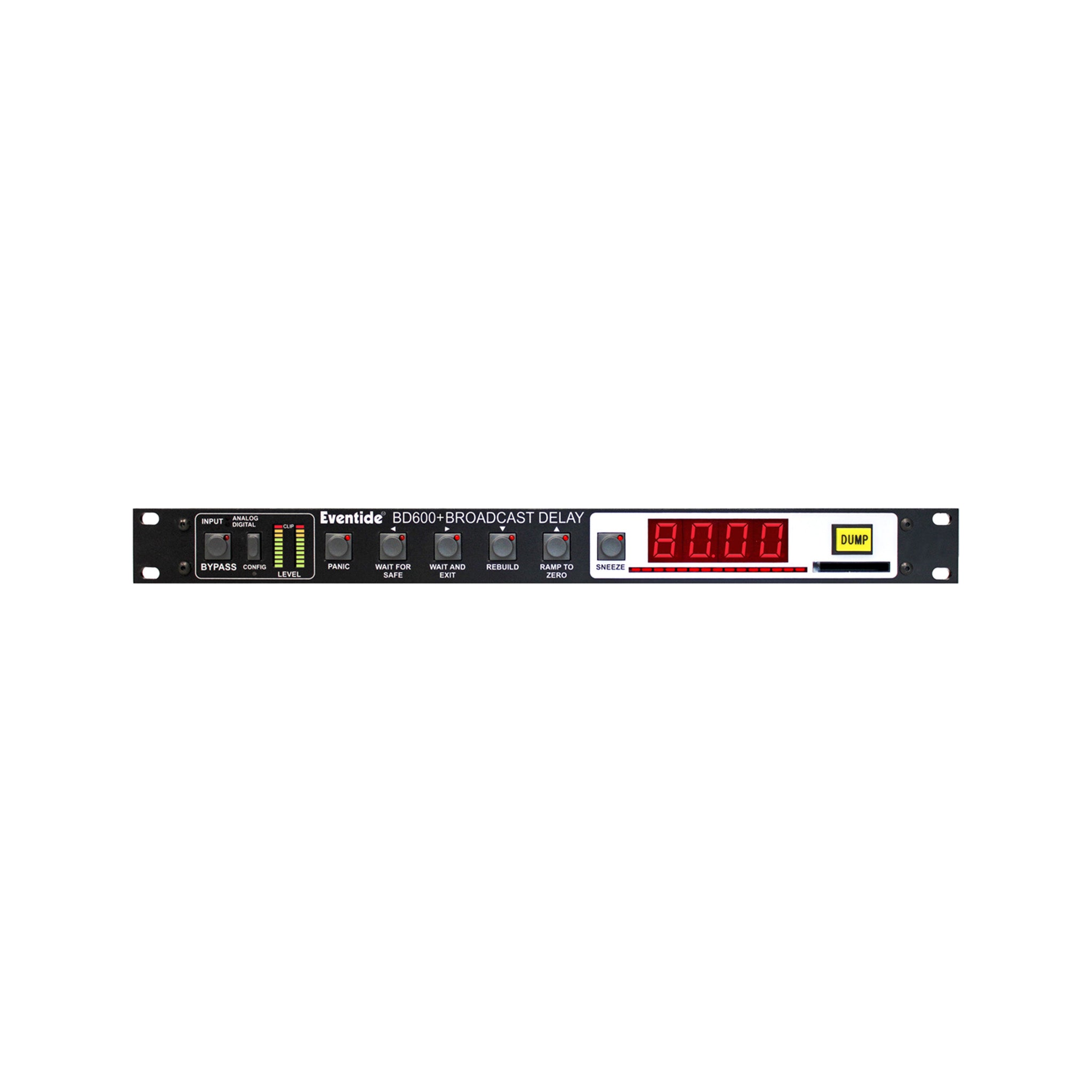

Eventide BD600E+ Professional Broadcast Delay with Extended Remote Functionality

The BD600E+ supports an unprecedented 80-second delay and features patented circuitry - twice the delay of conventional devices. Flexible delay buffer length adjustment from 4 seconds to 80 seconds. Customize DUMP in 1/2 second increments up to 10 seconds. Each time you press Dump, only a short segment is deleted. For example, if you set a unit to a delay buffer of 80 seconds, each dump is 8 seconds long, so you have 10 separate dump segments. Pressing the DUMP button once will cut out that 8-second segment. You still have 72 seconds of delay. If there are still unwanted trash-talk segments, press the DUMP button again to cut out another segment, you still have more than 1 minute of delay. The “sneeze” button temporarily corrects audio mixed into the delay, allowing the presenter to avoid being caught out when he or she accidentally coughs, sneezes or says something wrong – minimizing dead air on live. You can’t broadcast live without a safety net. With the BD600E+, you don’t have to worry about running out of delay memory.

Characteristic:

• Ultra-precise delay mode for HD broadcast quality
• Protect your broadcast with an 80 second delay
• USB Remote Control
• “Panic” supports playing WAV files while recreating delay
• 24-bit AES/EBU digital I/O, optional Wordclock sync
• 24-bit analog XLR I/O
• Dump length can be customized according to user needs
• “Sneeze” button to temporarily edit unwanted sound
• Remote control
• Euroblock easy to wire for remote connection (on base unit)
• RS-232 I/O
• Programmable I/O
• 16 bi-polar opto-isolated inputs and 16 open-collector outputs

Details:

• Analog I/O: XLR pin 2 hot, true differential balanced, +4 dBm nominal
• Digital I/O: 2 channels 24-bit AES/EBU
• Maximum delay length: Set to 4, 6, 8, 12, 16, 20, 30, 40, 60 or 80 seconds
• Ultra-precise fixed delay: From .010 seconds to 9,999,999 in microsecond increments
• Remote: 4 configurable inputs (closure to ground), 2 relay-isolated status outputs
• Compact Flash Interface: Supports Type I & Type II Compact Flash cards for WAV file playback and firmware updates
• Sample Rate: 48kHz, 44.1kHz, Word Clock, AES/EBU
• Power: 40W, 100-240 VAC, 50/60Hz
• Dimensions: 19" (w) x 10.5" (D) x 1.75" (H) / 48.3cm (W) x 26.7cm (D) x 4.5cm (H)
• Weight: 4.1 kg / 9 lb
