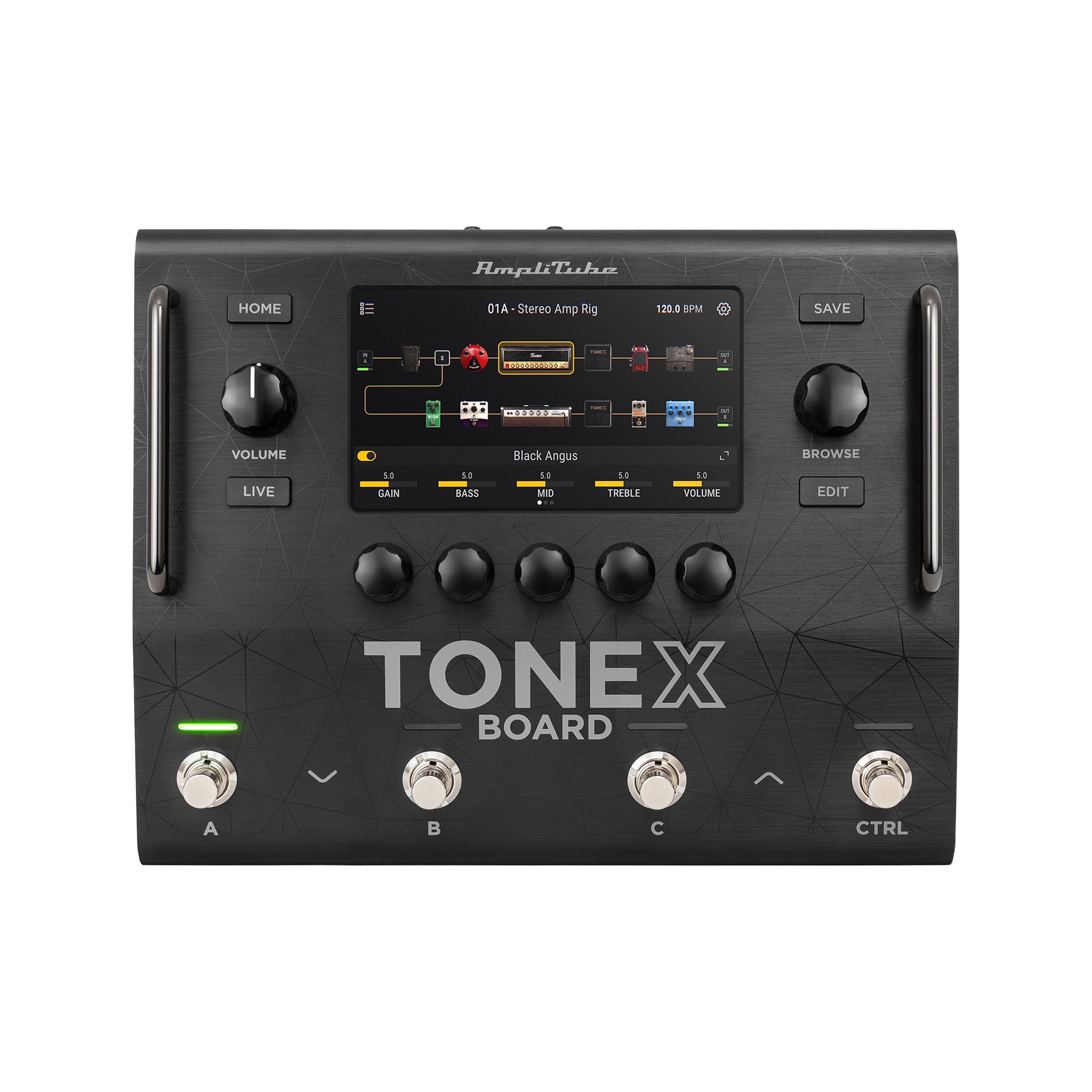

IK Multimedia TONEX Board Amp Modeler Effects Processor
Hover over image to zoom in
Drag to rotate 360
(Incl. Taxes)
About This Product
TONEX Board combines IK Multimedia’s award-winning AI Machine Modeling™ technology with 70+ effects derived from AmpliTube and custom-designed processors in a powerful all-in-one floorboard for guitar and bass.
Designed for stage and studio use, TONEX Board delivers authentic captured amp, cab, and pedal sounds alongside flexible dual signal-chain routing, advanced performance workflows, and professional connectivity. With up to 12 effect slots, Preset, Scene, and Stomp operating modes, a 5-inch high-resolution color touchscreen, stereo FX loop, MIDI integration, dual expression pedal inputs, and balanced XLR outputs, TONEX Board makes it easy to create everything from simple performance rigs to sophisticated stereo and dual-amp setups.
Complete integration with TONEX software, TONEX Editor, and ToneNET provides access to over 65,000 Tone Models and presets, making TONEX Board the professional centerpiece of the TONEX ecosystem.
Features:
- AI Machine Modeling™ technology with authentic captured amps, cabs, and pedals
- Dual signal-chain architecture with up to 2 Tone Models per path (1 amp + 1 stomp), or up to 4 Tone Models using split paths
- 75 total effects from AmpliTube, TONEX and 12 brand-new effects, with more to come
- Up to 12 effect slots with split-and-mix routing
- Two independent stereo outputs with global parametric EQ, flexible routing, and four-cable method support
- 5-inch high-resolution touchscreen with five precision encoders for fast editing
- 1,400+ onboard preset slots with Preset, Scene, and Stomp performance modes
- Stereo FX loop, MIDI I/O, and dual expression pedal inputs
- 4-in / 2-out USB audio interface with configurable routing and direct monitoring
- Complete compatibility across the TONEX ecosystem
- Includes TONEX Player, TONEX Modeler, and TONEX Board Editor, plus 2000 premium Tone Models from IK and select Tone Partners
- VIR™ Cabinet technology, custom IR loading, and access to 60,000+ Tone Models and presets via ToneNET
Specifications
- Display: 5" high-resolution color touchscreen.
- Preset Capacity: Store up to 1,400 presets across 12 setlists (60 banks with 3 presets per bank).
- Processing Power: Up to 4 simultaneous Tone Models per preset (1 Amp and 1 Stomp per path) and up to 12 effect slots per chain.
- Built-in Effects & IRs: 70+ built-in effects (derived from AmpliTube and custom-designed processors), a Custom IR Loader module and VIR (Volumetric Impulse Response) technology.
- Audio Converters: Ultra-low noise, 24-bit/192 kHz converters.
- Frequency Response: 5 Hz–24 kHz.
- Dynamic Range: Up to 123 dB dynamic range.
- USB Audio Interface: Integrated 4-in / 2-out USB audio interface functionality with direct monitoring (Coming late September with a FW update).
- Controls: 5 encoders for on-the-fly parameter adjustments and 4 footswitches with LED indicators.
- Workflow Modes: 3 flexible modes (Preset Mode, Scene Mode, and Stomp Mode).
- Input: Stereo input (accommodates guitar, bass, keyboards, synths, grooveboxes, etc.).
- Main Outputs: Dual independent stereo outputs (2x XLR bilanced for 1/L & 2/R, 2x TRS for 3/L & 4/R) to route cabinet and non-cabinet signals separately.
- FX Loop: Stereo FX Loop (1x stereo send/return or 2x independent mono send/return) placeable anywhere in the signal chain.
- Headphone Output: 1x Headphone output.
- MIDI: Full MIDI implementation via 5-pin DIN MIDI IN/OUT.
- External Control: 2x Expression pedal / EXT Control inputs.
- USB: USB-C connection for presets/tone models transfer, firmware updates, and audio interface (Coming late September with a FW update).
- Includes: TONEX Board, USB-C connection cable, Power Supply Unit, Adhesive rubber feet
- Included Software: TONEX 2.0 MAX, AmpliTube 5 MAX, TONEX Board Editor, TONEX Modeler
- Dimensions: 235 mm x 184 mm x 72 mm / 9.25” x 7.24” x 2.83”
- Weight: 1.6 kg / 3.52 lbs
PRODUCT HIGHLIGHTS
- Perfect Tone Capture
- Perform Anywhere
- Endless Tone Library
- Vivid Touch Control
