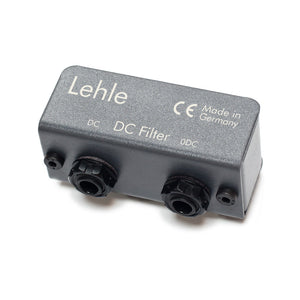

Lehle DC Filter

The Lehle DC Filter eliminates DC voltage from analogue signals. Audio signals containing DC voltage cause ugly switching noise. Now, both line and high-impedance signals are cleaned - but with no loss of sound. The DC Filter is of full stereo type, and thus filters stereo - and, of course, mono-signals. This little aid can even process balanced signals. The Lehle DC Filter is a passive filter, so it needs no power supply.

Features:

• Line signals as well as high-impedance signals will be cleaned - without any coloration of the sound.
• The Lehle DC Filter is made in stereo and can filter mono/stereo signals.
• Passive design—no power supply required.
• Do not use the Lehle DC Filter for speaker signals coming from an amplifier! The Lehle DC Filter is designed for line levels up to 22dBU.

Specifications:

• Frequency Response: 20 Hz - 100 kHz
• Load Impedance: 4.7 MOhm
• Max. Level: 9.75 V RMS (ca. 22 dBU)
• Overall Height: 3.1 cm (1.2”)
• Width: 3.7 cm (1.5”)
• Length: 7 cm (2.8”)
• Weight: 117 g
