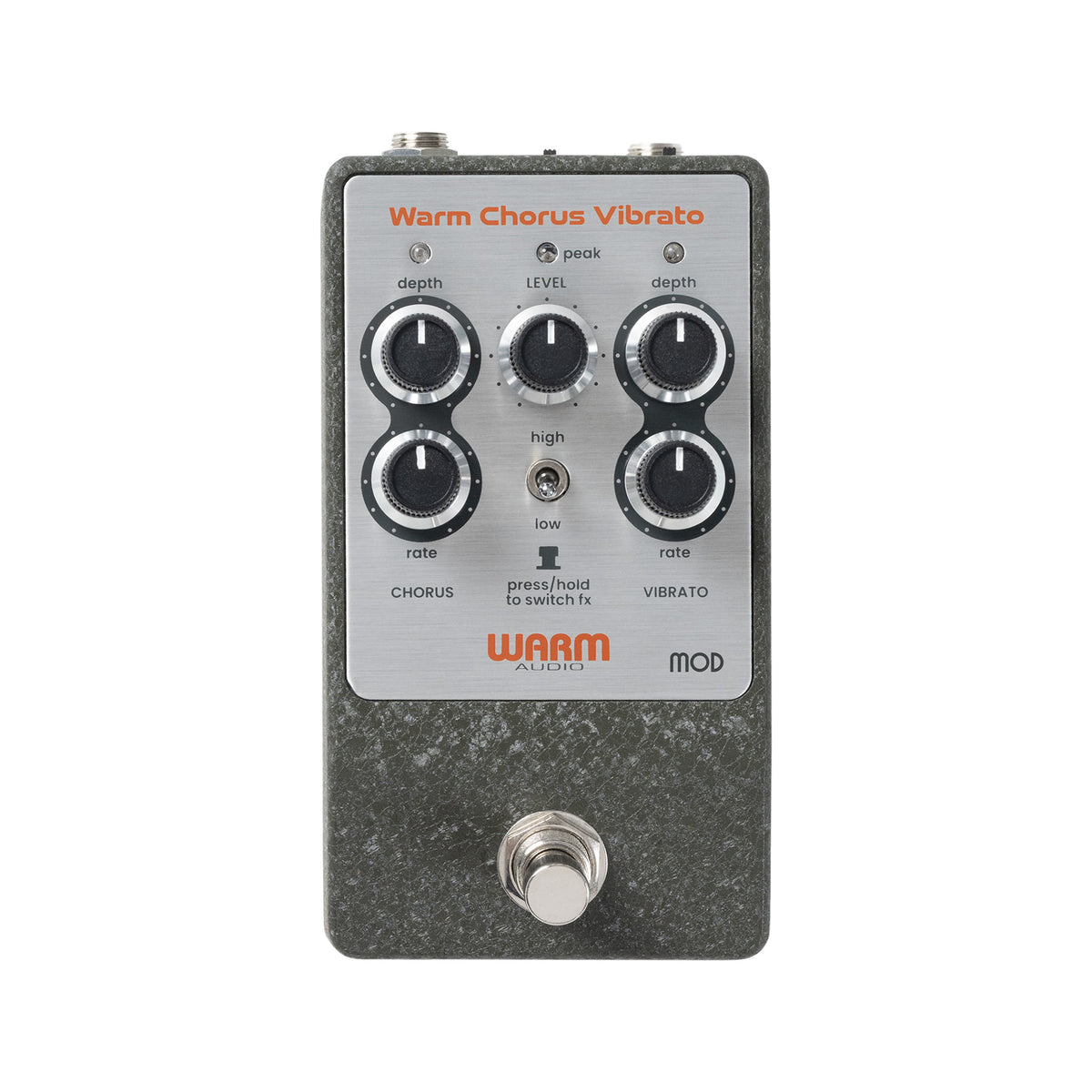

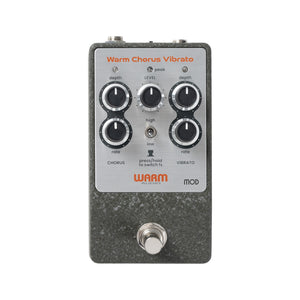

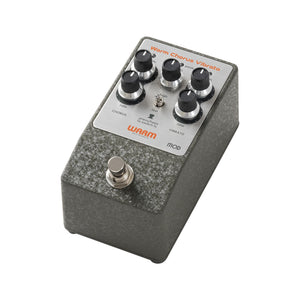

Warm Audio WA-C1-MOD Stereo Chorus & Vibrato Pedal

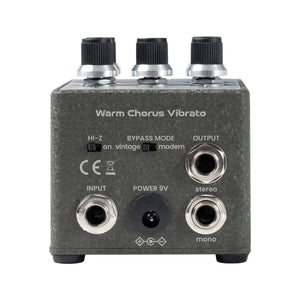

The WA-C1 Chorus Vibrato Mod is a pedalboard-friendly recreation of the most celebrated all-analogue chorus in guitar pedal history with additional no-compromise features for exploring legendary modulated tones. The WA-C1 Mod starts with a premium, all-analogue preamp known for being a favourite of guitar players who demand ultra-responsiveness, now fully bypassable to accommodate complex rigs. The lush chorus setting features separated depth and rate controls to expand beyond the limitations of vintage units while delivering true-to-original tone. The vibrato section is preserved as authentic to the original pedals, and an added hi-z switch on the back of the pedal allows players to compensate for higherimpedance of guitars vs. keyboards to add clarity to the high end on guitars if desired.

Features:

• 100% Analog Compact Stereo Chorus & Vibrato Pedal With Separate Controls For Depth & Rate, Selectable Impedance & A Bypassable Analog Preamp
• Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Vintage/Modern Preamp Switch, Hi-Z On/Off.
• Components: (5X) IC’s (Including 3X Texas Instruments Premium Audio Op Amps In Signal Path) | (11X) Discrete Transistors | (3X) FETs | (19X) Diodes 2 x MOSFETs and a premium MN3007 BBD chip recreation.
• Vintage-Correct Internal Voltage Operation Via Dual DC-DC Voltage Converter
• Power Consumption: 800mW; 200mA at 9V With
• Input Sensitivity: 80mV /1 0mV
• Output level: 315mV | Jacks: (1X) Input, (2X) Outputs
• Dimensions: 2.8" x 2.4" x 4.5" / 7.0 cm x 6 cm x 11.5 cm
• Weight: 0.5 kg (1 lbs)
