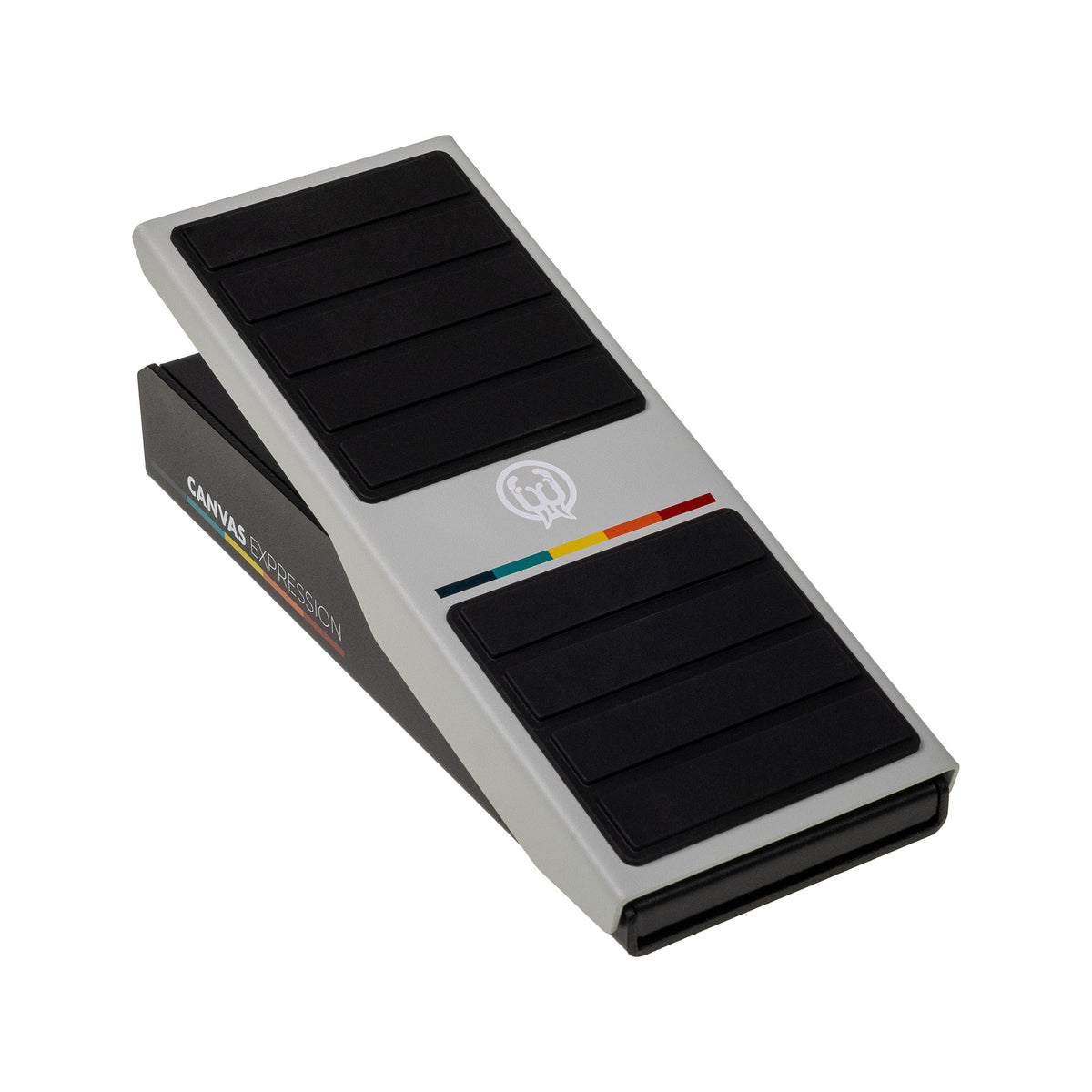

Walrus Audio Canvas Expression Pedal

One Expression pedal shouldn’t limit what you can control. Canvas Expression reimagines what an expression pedal can be: two independently configurable outputs capable of Expression, Switch, or Control Voltage (CV), plus deep MIDI control over products via ⅛” TRS output and USB-C. Canvas Expression is your command center for manipulating parameters in real-time that adapts to nearly any pedalboard, synth, or desktop setup.

Features:

• Dual independently configurable outputs support Expression, Switch or Control Voltage (CV) operation.
• Automatic wiring detection supports TRS, RTS and TS resistance modes for broad compatibility.
• Adjustable taper and forward or reverse sweep direction let you customise the pedal’s response.
• Programmable switch outputs support momentary or latching operation with adjustable activation points.
• Selectable 0–3.3V and 0–5V CV outputs provide control for synthesizers, Eurorack and compatible effects.
• MIDI control supports up to 16 assignable CC and PC messages through TRS MIDI and USB-C.
• High-resolution 14-bit USB MIDI provides smooth parameter control for compatible hardware and software.
• Web-based editor allows easy configuration of MIDI assignments, switch behaviour, resistance settings and firmware updates.
• Adjustable treadle tension lets you customise the feel from lighter to firmer resistance.
• Contactless magnetic position sensor eliminates strings, gears and potentiometers for reliable long-term operation.
